Laser Safety Curtain - Laser Defender®
Laser Safety Curtains - Laser Defender®
Laser Defender® curtains are provided with high-level protection from laser radiation, and meet the laser safety requirements of class 4 laser. Categorized into 2 series Laser Defender and Laser Defender Pro, Laser Defender® curtains are tested according to laser safety standards GB 7247, IEC 60825 and EN60825. In addition, conformity with CMA and CNAS, accreditation system which have been integrated to international mutual recognition, they are compliant with CE standards, and meet the threshold of European market. Widely applied to laser processing, military industry, semiconductor and medical facilities, Laser Defender® is highly appreciated by its users.
Selections：
|
Standard Version (Photonics) |
Laser Defender 1520 |
Laser Defender 1525 |
Laser Defender 1527 |
| Parameter | PEL＞258.09W/cm², Wavelength=1070nm, φ=1mm, T=100s PEL＞72.33W/cm², Wavelength=1070nm, φ=3mm, T=100s PEL＞41.08W/cm², Wavelength=1070nm, φ=5mm, T=100s |
||
| Thickness | 0.6mm | ||
| Weight | 0.65kg/㎡ | ||
|
Standard Version (Industry) |
Laser Defender Pro 1520 |
Laser Defender Pro 1525 |
Laser Defender Pro 1527 |
| Parameter | PEL＞543.348W/cm², Wavelength=1070nm, r=2.509mm T=100s |
||
| Thickness | 1.4mm | ||
| Weight | 1.7kg/m² | ||
| Specifications | |||
| Size | 1.5m(W)x2m(H) | 1.5m(W)x2.5m(H) | 1.5m(W)x2.7m(H) |
| Material | Composite material with special coating | ||
| Color | Black(other colors custom-designed) | ||
| Laser Safety Standards | GB 7247.1/4/13、IEC 60825-1/13、CE/EN 60825-1/4 | ||
| Features | Low Reflection（≈4%）, Aging Resistance, Corrosion Resistance, Flame Retardant & Temp Resistance, Abrasion Resistance, Dirt Resistance、 |
||
| Warning | Curtains are damaged with an appearance of white smog, please do NOT continue to use. |
||
| Config/ Std | Eyelets, Laser warning sign, Velcro | ||
| Config/Opt | Track units, Valance, Crossed pulley, outer lining(dust-free & anti-static) | ||
| Compatibility | All wavelengths and all lasers | ||
| Application | Class 4 laser, Laser labs, Laser devices, Laser processing workplace | ||
| Installation | Ceiling- and Floor- mounted, Wall-mounted, using with laser equipment, Straight Run & No Turns, L-Shape, U-Shape, Rectangle Shape |
||
Laser Defender curtains are suitable for applications of low power lasers, such as optical communication, optical measurement, laser radar, medical&cosmetic, semiconductor& micro-electronics. In contrast, Laser Defender Pro curtains are mostly applied to the areas of high-level power lasers, e.g. military industry, industrial laser processing, especially handheld laser processing. With the surface resistance reaching at 1010Ω, the curtains can meets the requirements of conventional anti-static. For more demanding in terms of anti-static or dust-free, there’s another type of curtains be customized, characterized with surface resistance 106Ω, anti-friction voltage 100V, especially suitable for the clean room.
There are 2 kinds of installation method for Laser Defender® curtains: ceiling-mounted (sliding open or roller blind) and floor-mounted (freestanding and moveable). We can supplier the track units, roller blind accessories and aluminium frames, depending on customer’s demands. The curtains of non-standard size or shape also can be custom-designed to meet the special needs, e.g. a protective cover for machine.
Standard Model Drawing：
Illustration for Ceiling-mounted：

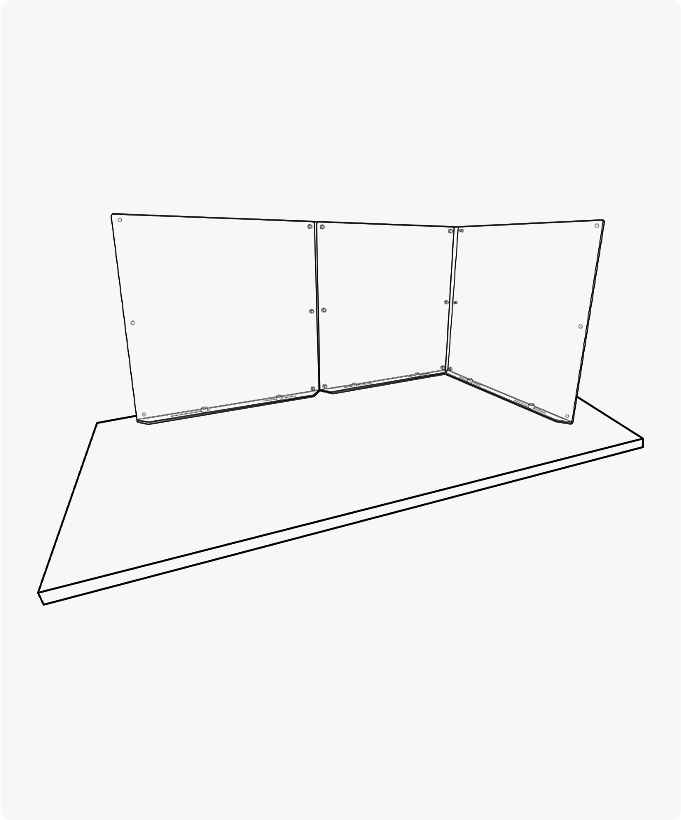

Illustration for Floor-mounted：
